Apr 13 2015

MLA-T from the inside

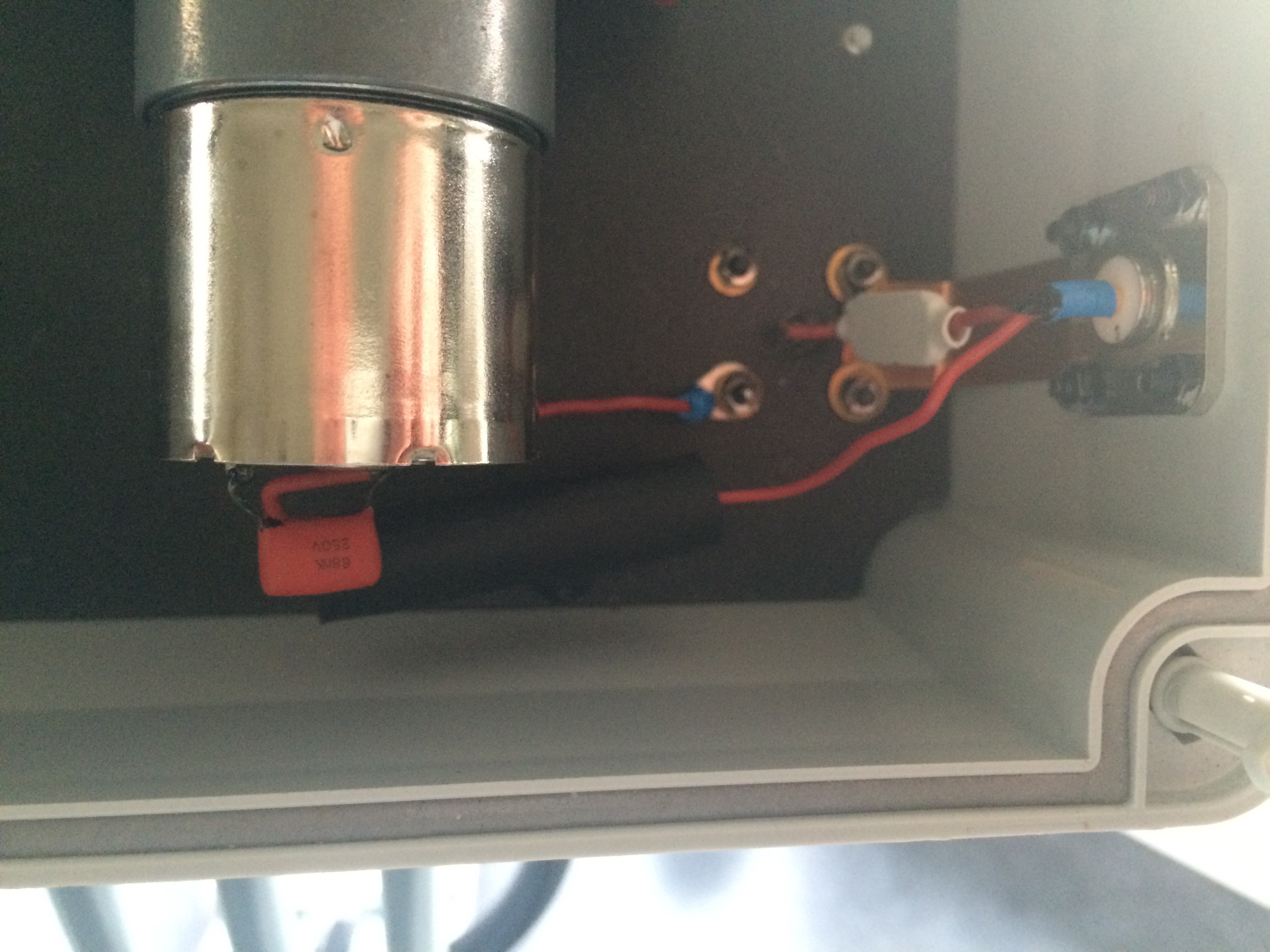

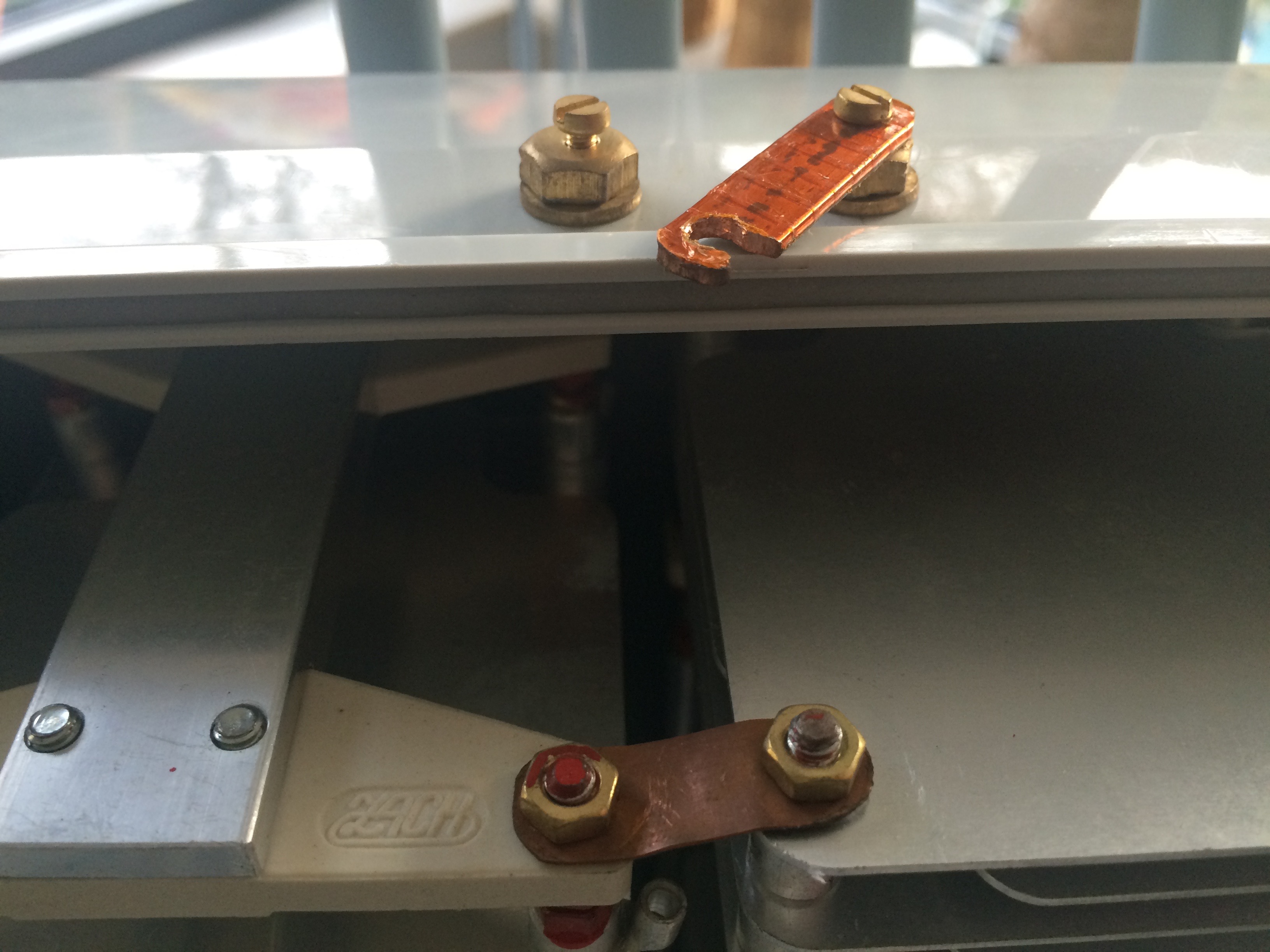

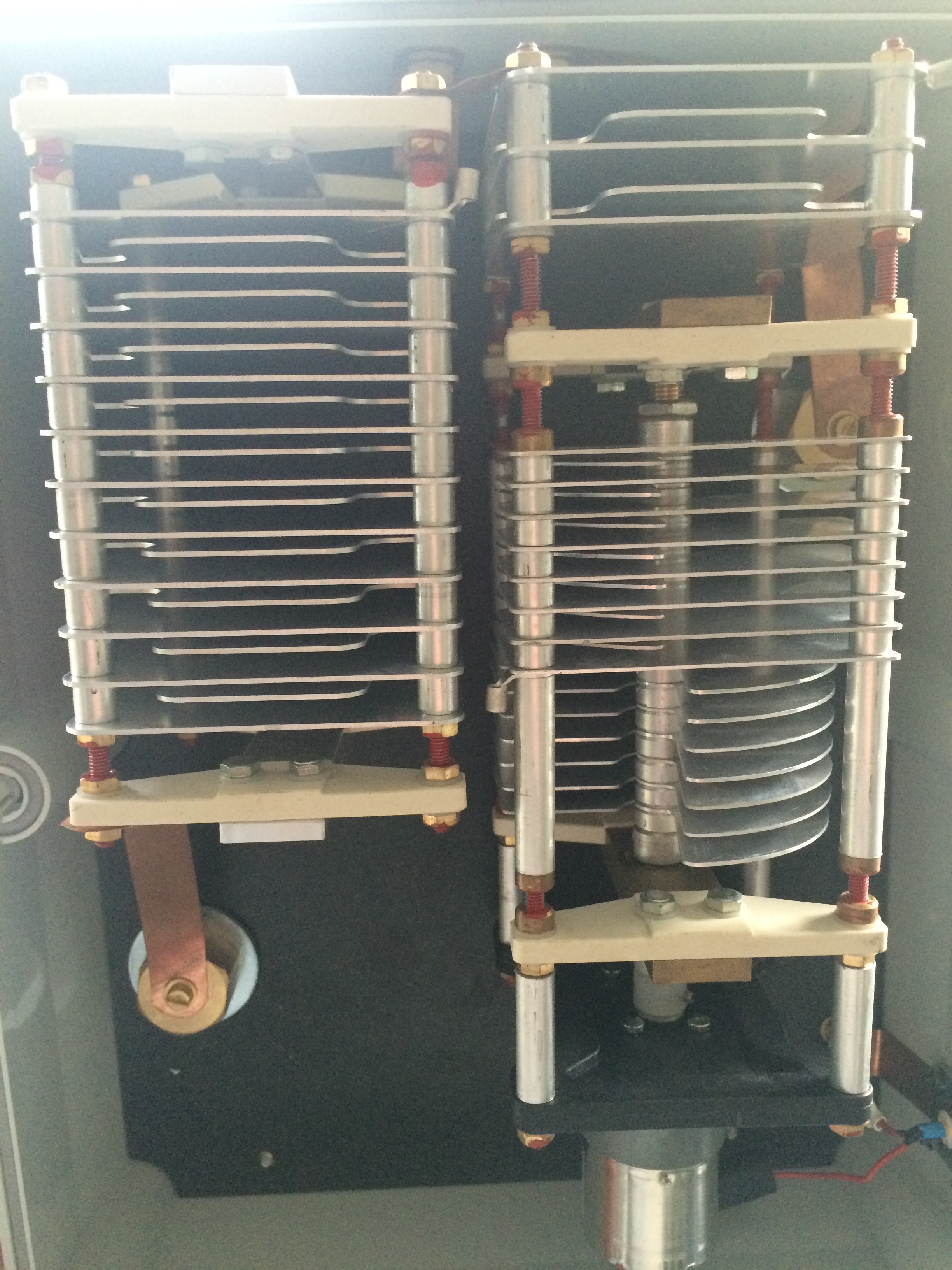

Some pictures from the MLA-T Magnetic Loop Antenna. You can see the stepper motor (with 1:600 delay), the feedlines from the N (Yes, N, not PL) connectors and the extension capacitor with shunt for operations on the 160-meter band.

IMG_2414IMG_2413

IMG_2412

1 comment

    • lloyd on 12/10/2015 at 21:50
    • #
    • Reply

    How does the loop work on the 3 bands?

    Lloyd
    VE3ERQ
